LMCache supports gpt-oss (20B/120B) on Day 1

LMCache now supports OpenAI’s newly released GPT-OSS models (20B and 120B parameters) from day one! This post provides a complete guide to setting up vLLM with LMCache for GPT-OSS models and demonstrates significant performance improvements through our CPU offloading capabilities.

Step 1: Installing vLLM GPT OSS Version

Installation

uv pip install --pre vllm==0.10.1+gptoss \
    --extra-index-url https://wheels.vllm.ai/gpt-oss/ \
    --extra-index-url https://download.pytorch.org/whl/nightly/cu128 \
    --index-strategy unsafe-best-match

Test the Installation

vllm serve openai/gpt-oss-120b \
  --max-model-len 32768 \
  --disable-hybrid-kv-cache-manager

curl http://localhost:9000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -d '{
    "model": "openai/gpt-oss-120b",
    "messages": [
      {
        "role": "user",
        "content": "Hello how are you today"
      }
    ],
    "temperature": 0.7
  }'

Step 2: Install LMCache from Source

Why Install from Source?

vLLM requires nightly built PyTorch to serve GPT models. To ensure compatibility, we highly recommend installing LMCache based on the PyTorch version in your current virtual environment.

Installation Process

Install LMCache from source (this command may take a few minutes due to CUDA kernel compilations):

git clone https://github.com/LMCache/LMCache.git
cd LMCache

# In your virtual environment
ENABLE_CXX11_ABI=1 uv pip install -e . --no-build-isolation

Test the Installation

python3 -c "import torch; import lmcache; import lmcache.c_ops"

Step 3: Run vLLM with LMCache

LMCache Configuration

Create a configuration file backend_cpu.yaml for CPU offloading:

# Create a CPU offloading buffer with 80G
chunk_size: 256
local_cpu: True
max_local_cpu_size: 80

Launch vLLM with LMCache

LMCACHE_CONFIG_FILE="./backend_cpu.yaml" \
LMCACHE_USE_EXPERIMENTAL=True \
vllm serve \
    openai/gpt-oss-120b \
    --max-model-len 32768 \
    --disable-log-requests \
    --disable-hybrid-kv-cache-manager \
    --kv-transfer-config \
    '{"kv_connector":"LMCacheConnectorV1", "kv_role":"kv_both"}'

Step 4: Benchmark Results

Use Case: Long Document Q&A

• Input: 20 different documents with an average length of 20K tokens each
• Output: 50 tokens per query

1. Phase 1: Send all documents to the serving engines to warm up the KV cache
2. Phase 2: Shuffle the queries and send them again, measuring TTFT and finish time

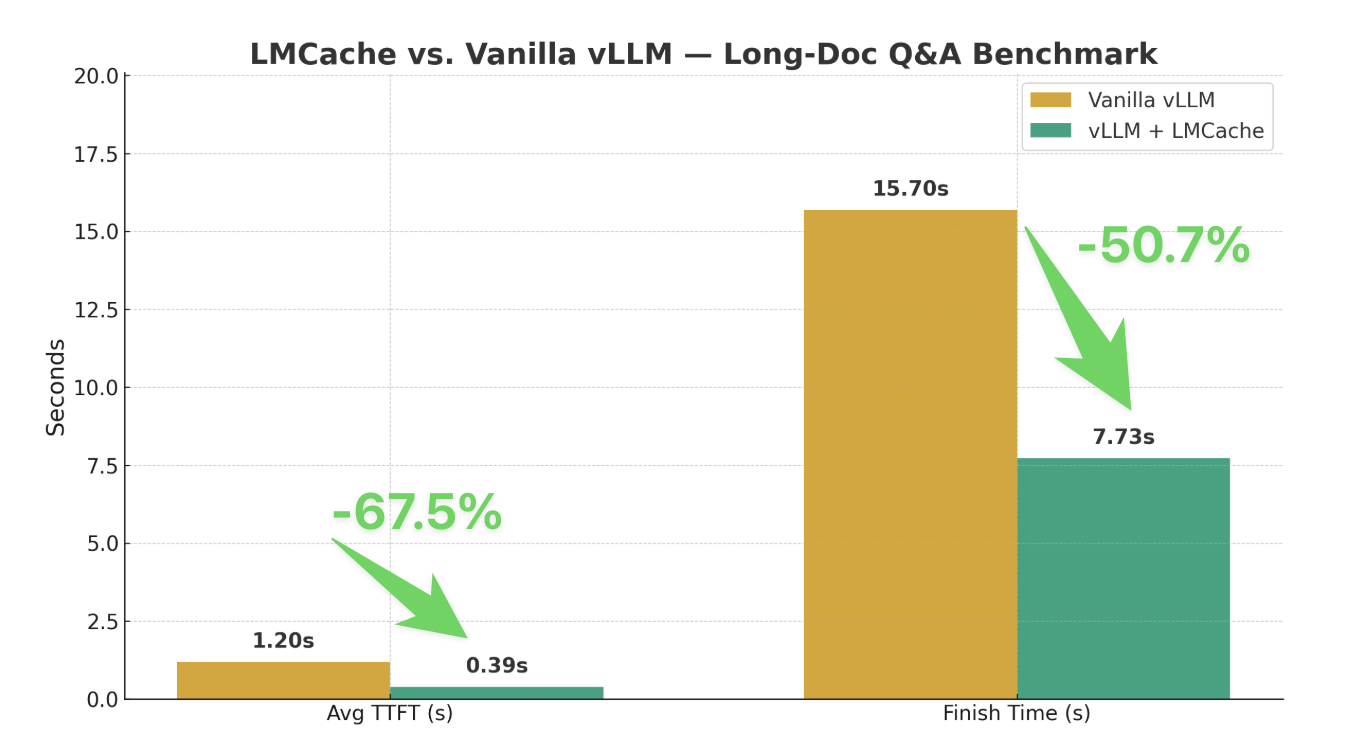

Performance Results

The benchmark results for Phase 2 show impressive improvements:

Why the Performance Gain?

When using a single A100/H100 to serve GPT-120B, the available KV cache GPU buffer is typically less than 10GB. With LMCache’s CPU offloading buffer, vLLM can store and reuse KV cache for many more prefixes, resulting in:

• 67% reduction in Time to First Token (TTFT)
• 51% reduction in total query completion time

Running the Benchmark

You can reproduce these results using our benchmark script:

python long-doc-qa.py --num-documents 20 \
  --document-length 20000 --output-len 50 \
  --repeat-count 1 --repeat-mode random \
  --shuffle-seed 0

The complete benchmark script is available at https://github.com/LMCache/LMCache/blob/dev/benchmarks/long-doc-qa/long-doc-qa.py.
